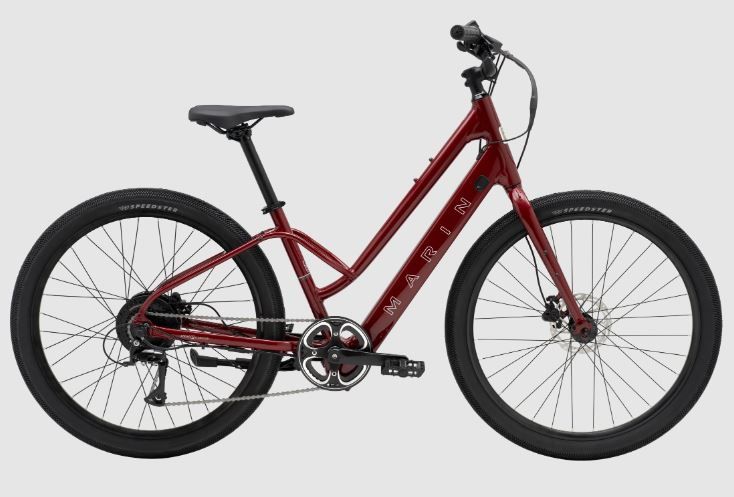

Marin Stinson E ST
Our renowned Stinson comfort bike, now with a boost, now with a throttle!
The Stinson E ST takes all the beloved features of the standard model, adds an ease-of-access step-through frame, also delivered with a smooth and powerful 250W rear hub motor to transform the fun and stylish bike into an amazing experience for everything from bike path cruising to daily commuting.
Range
15-62 miles/25-100km
Switch
Handlebar Mount LCD Switch & Display
Battery
Bafang 340Wh, 36V, In-tube
Motor
Bafang 250 Watt Hub Motor, 40Nm, 36H
Fork
CrMo Steel, Straight Blade, Disc Specific, Fender and Rack Eyelets
Frame
Series 1 Comfort, E-Bike Specific, 6061 Aluminum, 27.5” Wheels, Disc Specific, Low-Step Design, Comfort Control Geometry, Kickstand Mount, Fender and Rack Mounts
Rim
Marin Aluminum Double Wall, Disc Specific
Hub Rear
Bafang 250 Watt Hub Motor, 40Nm, 36H
Hub Front
Forged Aluminum Alloy, 32H
Spokes
14g Stainless Steel
Tires
Vee Tire Co. Speedster, 27.5”x2.35”, Puncture Protection
Shift Lever
Shimano Altus 8-Speed RapidFire
Crankset
Alloy Crank, Steel 38T Chainring, Ring Guard
Bottom Bracket
Integrated Torque Sensing, Sealed Cartridge Bearings, Square Taper
Chain
KMC Z8
Cassette
SunRace 8-Speed, 11-34T
Brakes Front
Tektro MDM280 Mechanical Disc, 160mm Rotor
Brakes Rear
Tektro MDM280 Mechanical Disc, 160mm Rotor
Brake Levers
Alloy, Long Pull
Handlebar
Marin Alloy, 25mm Rise, 18˚ Backsweep
Stem
Marin Alloy
Grips
Marin County
Headset
FSA, TH No.10P
Seatpost
Marin Alloy, 30.9mm
Saddle
Marin Comfort
Pedals
Nylon Platform
