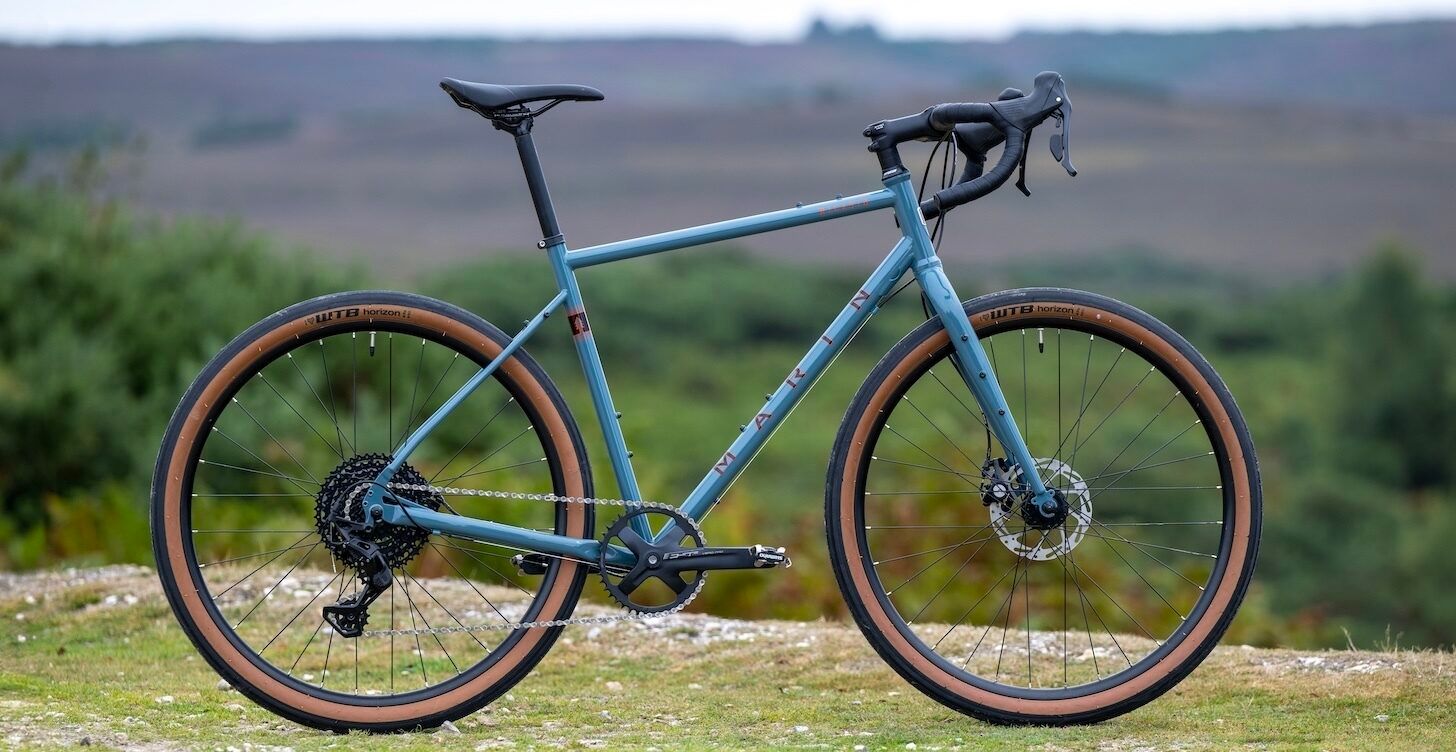

Marin Nicasio +

Specifications

• Frame

  Series 1 Double Butted CrMo Beyond Road, 650B Wheels, Beyond Road Geometry, Fender and Rack Mounts, Disc Mount

• Fork

  CrMo, Fender and Rack Eyelets, IS Disc Mount

• Rims

  Marin Aluminum Double Wall, 25mm Inner, Disc Specific

• Hub, Rear

  Forged Aluminum Alloy, Disc, 32H

• Hub, Front

  Forged Aluminum Alloy, Disc, 32H

• Spoke, Nipples

  14g Black Stainless Steel

• Tires

  WTB Horizon, 650Bx47mm

• Derailleur, Rear

  microSHIFT Advent, 1x9 w/ Clutch Mech

• Derailleur, Front

  N/A

• Shift Lever

  microSHIFT Advent, 1x9 Specific

• Crankset

  FSA Vero Pro, Narrow Wide, 42T

• Bottom Bracket

  Sealed Cartridge Bearings, Square Taper

• Chain

  KMC X9

• Cassette

  SunRace 9-Speed, 11-46T

• Brake, Front

  Tektro MDC400, Road Mechanical, 160mm Rotor

• Brake, Rear

  Tektro MDC400, Road Mechanical, 160mm Rotor

• Brake Levers

  microSHIFT Advent

• Handlebar

  Marin Butted Alloy, Compact 12º Flared Drop

• Stem

  Marin 3D Forged Alloy

• Grips

  Marin Comfort Tape

• Headset

  FSA ORBIT CE No.8B, Sealed Cartridge Bearings

• Seatpost

  Marin Alloy, 27.2mm

• Saddle

  Marin Beyond Road Concept

• Pedals

  Marin Oso OEM Nylon Platform

Specifications, pricing, and availability are subject to change without notice.

Geometry

	50	52	54	56	58	60
AStack	534.57	541.26	555.4	574.52	590.64	609.72
BReach	349.75	359.8	360.48	378.42	384.42	398.59
CHeadtube Angle	70°	70.5°	70.5°	72°	72.5°	72.5°
DHeadtube Length	125	130	145	155	170	190
ESeattube Angle	74.5°	74°	73.5°	73.5°	73°	73°
FSeattube Length	440	470	490	510	530	550
GToptube Effective	498	515	525	545	565	585
HBB Height	269	269	269	269	269	269
IBB Drop	72	72	72	72	72	72
JChainstay	420	420	420	420	420	420
KWheelbase	992.55	1000.22	993.92	999.2	1008.92	1029.1
LStandover Height	697.12	721.09	741.53	758.79	777.05	796.2
MFork Offset	57	57	57	45	45	45
Seatpost Diameter	27.2	27.2	27.2	27.2	27.2	27.2
Handlebar Width	400	400	400	420	420	440
Stem Length	75	75	75	90	90	90
Crank Length	170	170	170	175
