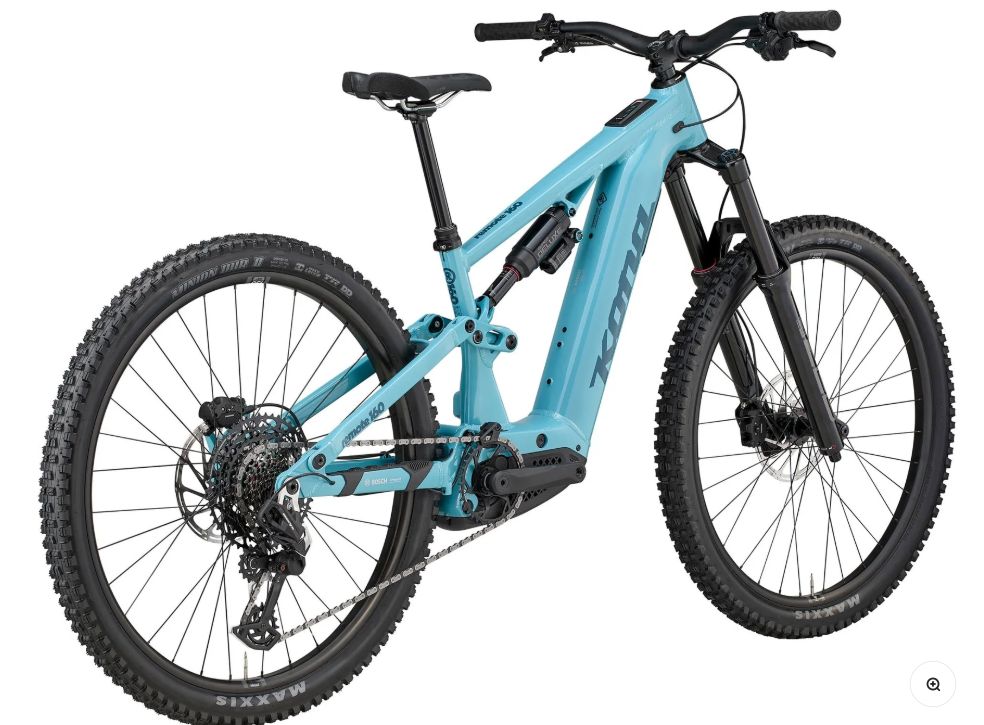

Kona Remote 160
$6,499.00
Sold out
160mm, 29" (MX compatible), Bosch CX 120nm, 800wh battery (+250wh range extender compatible), Super Deluxe/Zeb, Maven brakes, Eagle 90 drivetrain!
Sold out
Product Details
Brand: Kona Bicycle Company
THE TRAIL DIDN’T GET ANY SHORTER. You just got a whole lot faster getting back to the top. The Remote 160 keeps the confident geometry and playful ride that made it a favorite, now backed by Bosch’s full-power CX drive system and an 800Wh battery. Technical climbs become part of the fun, not the price of admission, leaving more energy for what matters most—the descent. Suddenly, after-work rides and lunch laps that used to mean one lap become three.
SPECS & GEOMETRY
SPECIFICATIONS
| FRAME | Kona 6061 Aluminum Butted 160mm Travel |
| SIZES | S, M, L, XL |
| REAR SHOCK | Rockshox Super Deluxe Select+ 230x57.5mm |
| FORK | Rockshox Zeb Select 170mm 29" |
| CRANKSET | FSA CK-745 155mm 34t |
| BOTTOM BRACKET | n/a |
| PEDALS | n/a |
| CHAIN | SRAM Eagle 70 T-Type |
| CASSETTE | SRAM Eagle 70 10-52t 12spd |
| CHAINGUIDE | One Up |
| FRONT DERAILLEUR | n/a |
| REAR DERAILLEUR | SRAM Eagle 90 Transmission |
| SHIFTER | SRAM Eagle 70 Transmission |
| BRAKE CALIPERS | SRAM Maven Base |
| FRONT BRAKE ROTOR | SRAM Centerline 200mm 6B |
| REAR BRAKE ROTOR | SRAM Centerline 200mm 6B |
| BRAKE LEVERS | SRAM Maven Base |
| HEADSET | FSA NO.55R/57 ZS56/ZS56 |
| HANDLEBAR | Kona 35mm / Back 10º / Up 5º / Rise 38mm / Width S 760mm / M 780mm / L-XL 800mm |
| STEM | Kona 35mm / Rise 0º / Length 40mm |
| SEATPOST | TranzX Dropper +RAD Internal 31.6mm / Length S 150mm / M 170mm / L 200mm / XL 230mm |
| SEAT CLAMP | Kona Clamp 34.9mm |
| GRIPS | Kona Key Grip Lock-on |
| SADDLE | WTB Volt Cromoly SL |
| FRONT HUB | Formula 15x110mm |
| REAR HUB | Formula 12x148mm HG |
| SPOKES | Stainless 2.0mm Black |
| RIMS | WTB HTZ Trail i30 |
| FRONT TIRE | Maxxis Assegai 29x2.5" DoubleDown MaxxGrip |
| REAR TIRE | Maxxis DHR II 29x2.4" (Size S 27.5x2.4") DoubleDown MaxxTerra |
| DRIVE UNIT | Bosch Performance Line CX 20mph |
| BATTERY | Bosch PowerTube 800Wh |
| DISPLAY | Bosch BRC3100 |
| CHARGER | Bosch 4A (110V) |
| BATTERY LOCK | n/a |
| PAINT COLOR | Gloss Reef Blue w/ Atlantic Blue Decals |
All Kona e-bikes have passed EN 15194 (EPAC) and ISO 4210 testing.
All specifications are subject to change without notice.
GEOMETRY
| Size | S | M | L | XL | |
| 1 | ST Length | 380 | 385 | 420 | 450 |
| 2 | TT Length | 560 | 585 | 613 | 652 |
| 3 | Reach | 430 | 455 | 480 | 515 |
| 4 | Stack | 636 | 636 | 646 | 656 |
| 5 | Standover | 763 | 763 | 770 | 775 |
| 6 | HT Angle | 63.5 | 63.5 | 63.5 | 63.5 |
| 7 | HT Length | 115 | 115 | 126 | 137 |
| 8 | ST Angle | 78.4 | 78.4 | 78.3 | 78.2 |
| 9 | CS Length | 445 | 445 | 445 | 445 |
| 10 | BB Drop | 15 | 25 | 25 | 25 |
| 11 | BB Height | 350 | 350 | 350 | 350 |
| 12 | Wheelbase | 1228 | 1253 | 1283 | 1323 |
| 13 | Front Center | 784 | 809 | 839 | 879 |
| 14 | Fork Length | 586 | 586 | 586 | 586 |
| 15 | Fork Offset | 44 | 44 | 44 | 44 |
