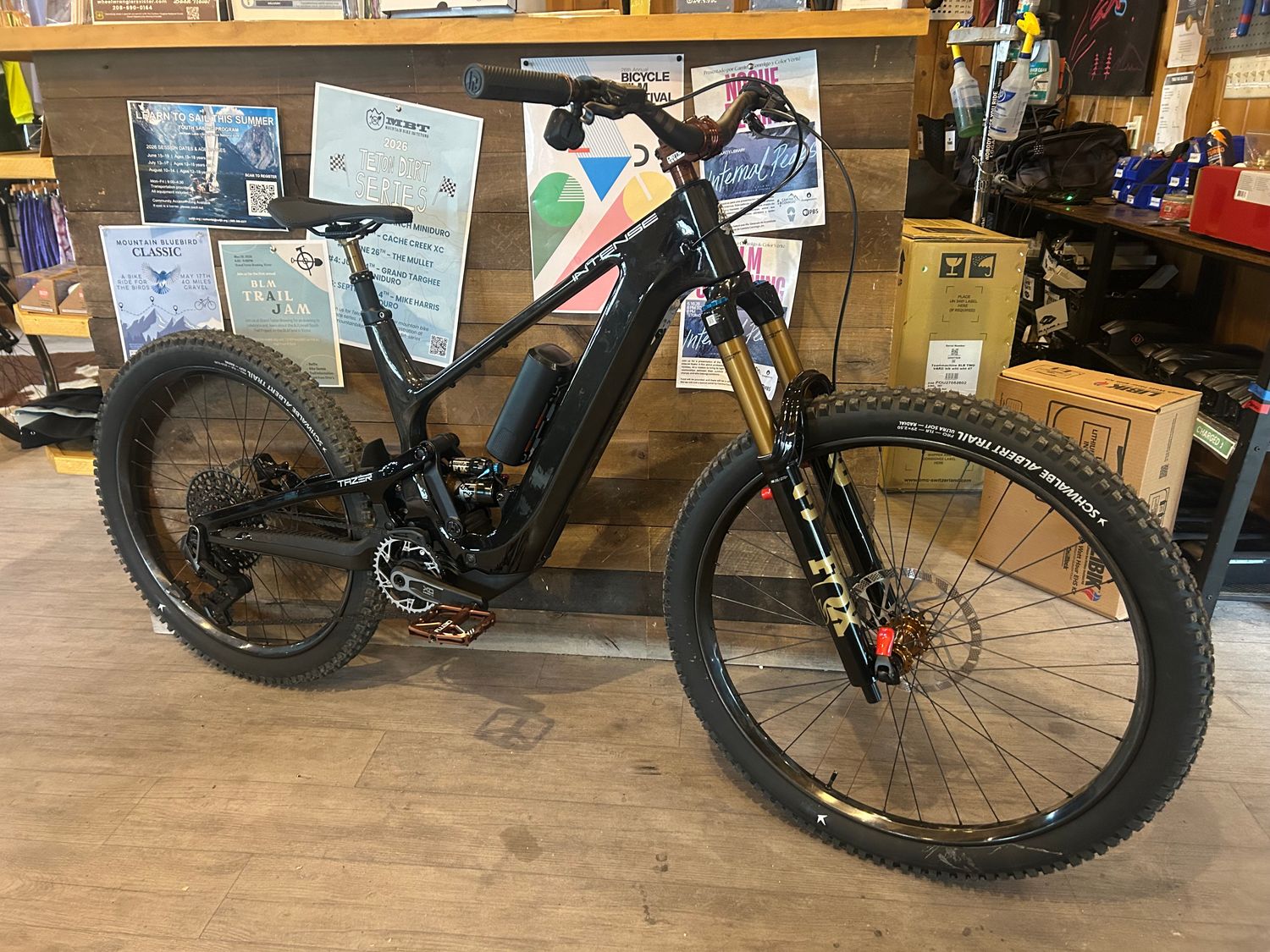

Intense Tazer T (WW Shop Super-Pro Build)

Built to push the limits of what a modern trail bike chassis is capable of, the all-new Tazer is the evolution of INTENSE Gravity DNA. Building off decades of speed-driven design paired with the Bosch Performance Line CX drive unit, the Tazer sets a new benchmark in powered trail riding.

The Tazer is a ground-up redesign built around the Dual Co-Rotating (DCR) Link suspension platform, engineered to deliver a ride that pushes you to go harder, faster, and further. Combined with Bosch’s latest fifth-generation Performance Line CX motor, delivering up to 120Nm of torque, the system and suspension work in complete unison. Maximizing traction, control, and confidence on every ride.

Available in both MX and 29” wheel configurations, with rider-tunable range options through 600Wh or 800Wh battery choices, and Powermore 250 compatibility. Offered in Satin Blue or UD Black, with the UD Black finish featuring a clear over carbon finish that reveals the raw carbon weave, giving every frame its own unique character and one of a kind appearance.

The result is a 160/150mm platform that delivers:

Reliable Power you need. Responsive Performance you Want.

GEOMETRY & SIZE CHART

TAZER WITH 279 REAR	SM	MD	LG	XL
Reach	430mm	460mm	480mm	505mm
Headtube Angle	64.5°	64.5°	64.5°	64.5°
Seattube Angle (Effective)	77.9°	77.9°	77.9°	77.9°
Seattube Angle (Actual)	72.8°	72.8°	72.8°	72.8°
Wheelbase	1205.4mm	1241.9mm	1266.1mm	1293.3mm
Chainstay Length	445mm	445mm	445mm	445mm
Front Center	756mm	792.5mm	816.8mm	843.9mm
BB Height	342mm	342mm	342mm	342mm
Stack	614.3mm	627.8mm	636.8mm	641.4mm
Toptube Length	560.9mm	595mm	617.8mm	644.2mm
Headtube Length	100mm	115mm	125mm	130mm
BB Drop Front Wheel	33mm	33mm	33mm	33mm
BB Drop Rear Wheel	13mm	13mm	13mm	13mm
Seattube Length	405mm	415mm	445mm	470mm
Max Seatpost Insertion Depth	(S) 220mm	(M) 230mm	(L) 250mm	(XL) 280mm

*Based Off a 571mm axle to crown, 44mm offset fork // **Based off Front tire OD of 750mm, Rear tire OD of 715mm

TAZER WITH 29 REAR	SM	MD	LG	XL
Reach	430mm	460mm	480mm	505mm
Headtube Angle	64.5°	64.5°	64.5°	64.5°
Seattube Angle (Effective)	77.9°	77.9°	77.9°	77.9°
Seattube Angle (Actual)	72.8°	72.8°	72.8°	72.8°
Wheelbase	1206mm	1242.5mm	1266.8mm	1293.9mm
Chainstay Length	450mm	450mm	450mm	450mm
Front Center	756mm	792.5mm	816.8mm	843.9mm
BB Height	342mm	342mm	342mm	342mm
Stack	614.3mm	627.8mm	636.8mm	641.4mm
Toptube Length	560.9mm	595mm	617.8mm	644.2mm
Headtube Length	100mm	115mm	125mm	130mm
BB Drop	33mm	33mm	33mm	33mm
Seattube Length	405mm	415mm	445mm	470mm
Max Seatpost Insertion Depth	(S) 220mm	(M) 230mm	(L) 250mm	(XL) 280mm

*Based Off a 571mm axle to crown, 44mm offset fork // **Based off Front tire OD of 750mm, Rear tire OD of 750mm

KINEMATICS

LEVERAGE RATIO: Compared to the previous Tazer, the all-new Tazer features a significantly refined suspension curve that remains smooth and consistent throughout the entire stroke. Where the old curve varied, the new one stays active and supple over chatter, builds progressively under load, and delivers confident support all the way to bottom-out.

AXLE PATH: The all-new Tazer features a significantly more rearward axle path compared to the original Tazer. Moving nearly 60% further back upon impact, the rear wheel now tracks up and over rocks, roots, and square edges rather than deflecting off them. That rearward movement translates to better bump compliance, improved traction, and a ride that stays smooth and planted.
