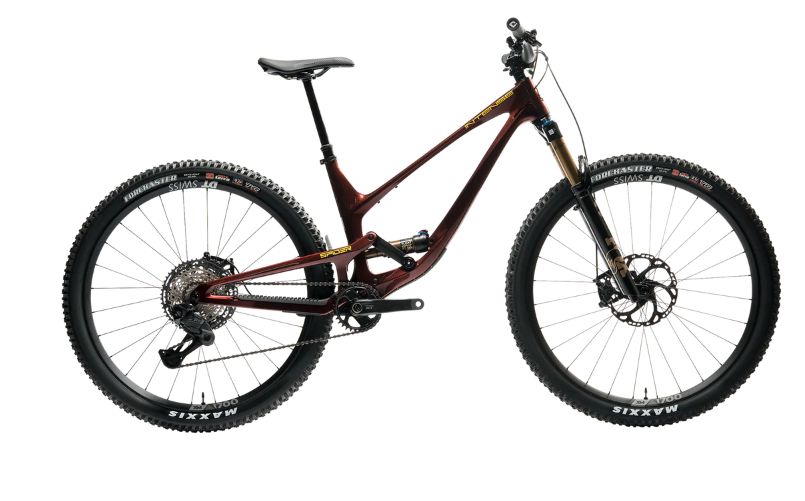

Intense Spider (Pro Build)
$5,999.00
Available to Order
All new trail bike 130/130 lightweight efficient, XT Di2, Fox Factory
Size
Color
Out of stock, available for pre-order
Product Details
Brand: Intense
The all-new Spider is built for modern trail riding: fast, efficient, and strikingly precise on technical terrain.
With 130mm of travel front and rear on a full 29" platform, it delivers the perfect balance of pedaling efficiency and trail capability. The new Dual Co-Rotating Link (DCR) suspension system maximizes traction and control while modern geometry keeps the Spider composed when the trail gets rough.
| Model Year: 2026 |
| Category: Trail |
| Available Sizes: S, M, L, XL |
| Available Colors: Oxblood Red, Satin Gray, & Chalk White |
| Frame Weight (No Shock): (S) 5 lbs 12 oz / 2.61 kg | (M) 6 lbs / 2.72 kg | (L) 6 lbs 3 oz / 2.80 kg | (XL) 6 lbs 6 oz / 2.89 kg |
| Headset: ZS44 Upper / ZS56 Lower |
| Seattube Diameter: 31.6mm |
| Seatpost Clamp: 36.4mm |
| Max Seatpost Insertion Depth: (S) 215mm | (M) 250mm | (L) 275mm | (XL) 300mm |
| BB Shell Width: BSA 73mm |
| Rear Hub Spacing: 148mm x 12mm Thru-Axle Boost |
| Max Front Travel: 130mm |
| Max Rear Travel: 130mm |
| Non-Compatible Shocks: All Coils | FOX Live Valve, X2 | RockShox Flight Attendant, Vivid Air |
| Shock Size: 210mm x 50mm |
| Front Shock Mount Hardware: 8mm x 30mm |
| Rear Shock Mount Hardware: 8mm x 20mm |
| Max Chainring: 34T |
| Chainline: 52mm Shimano 12S | 52mm SRAM Eagle 12S | 55mm SRAM T-Type 12S |
| Derailleur Hanger: UDH |
| T-Type Compatible: Yes |
| Recommended Max Tire Width: 2.5" |
| Type: Disc Brake Hydraulic, Post Mount / Direct |
| Min Rotor Size: 180mm |
| Recommmend Max Rotor Size: 203mm (with adapter) |
| Frame | Material: Size-Specific Carbon Layup |
| Wheel Size: Full 29" Platform | |
| Front/Rear Travel: 130mm / 130mm | |
| Derailleur Hanger: UDH | |
| T-Type Compatible: Yes | |
| Cable Routing: Fully guided internal | |
| Bottom Bracket: Threaded BSA | |
| Accessory Mount: Integrated mount under top tube | |
| Frame Protection: Custom molded protection | |
| Rear Fender: Integrated | |
| Suspension | Fork: FOX Factory 36 SL, 29in, 130, Grip X, HSC, LSC, LSR, 15QRx110, 44mm offset |
| Shock: FOX Float Factory, 2pos-Adj, Evol LV, 210x50 | |
| Drivetrain | Derailleur: Shimano XT Di2 RD-M8250-SGS, 12-Speed, Long Cage |
| Cassette: Shimano XT CS-M8200, 10-51 | |
| Crankset: Shimano XT FC-M8200, 32t, 165mm Length | |
| Shifter: Shimano XT Di2 SW-M8250 | |
| Bottom Bracket: Shimano XT MT800, Threaded | |
| Chain: Shimano XT CN-M8100 12 Speed | |
| Wheels | Wheelset: DT Swiss XM 1700 |
| Front Hub: DT Swiss 350 | |
| Rear Hub: DT Swiss 350 | |
| Tires: Maxxis Forekaster 29x2.40 3C/EXO/TR | |
| Brakes | Brake Set: Shimano XT M8220 |
| Rotor: Shimano XT SM-RT86, 6 Bolt, Ice-Tech, 203mm | |
| Components | Headset: Acros ZS44 Upper / ZS56 Lower |
| Stem: Renthal Apex, 35mm x 40mm, Black/Alu Gold | |
| Handlebar: Renthal Fatbar Carbon, 35, 30mm Rise, 800mm Length | |
| Seatpost: OneUp V3 Dropper Post (S) 150mm (M) 180mm (L) 180mm (XL) 210mm | |
| Seatpost Clamp: Intense 36.4mm | |
| Saddle: WTB Volt Med Fusion Form Titanium Blk | |
| Grips: ODI Elite Flow Lock-On | |
| Pro Build Weight | Medium Frame Pro Build: 29lbs 5oz / 13.30kg |
