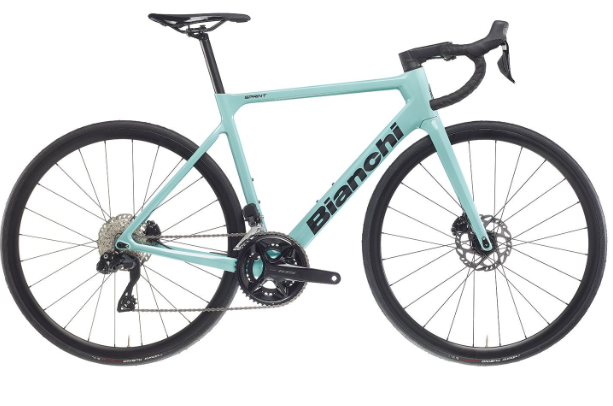

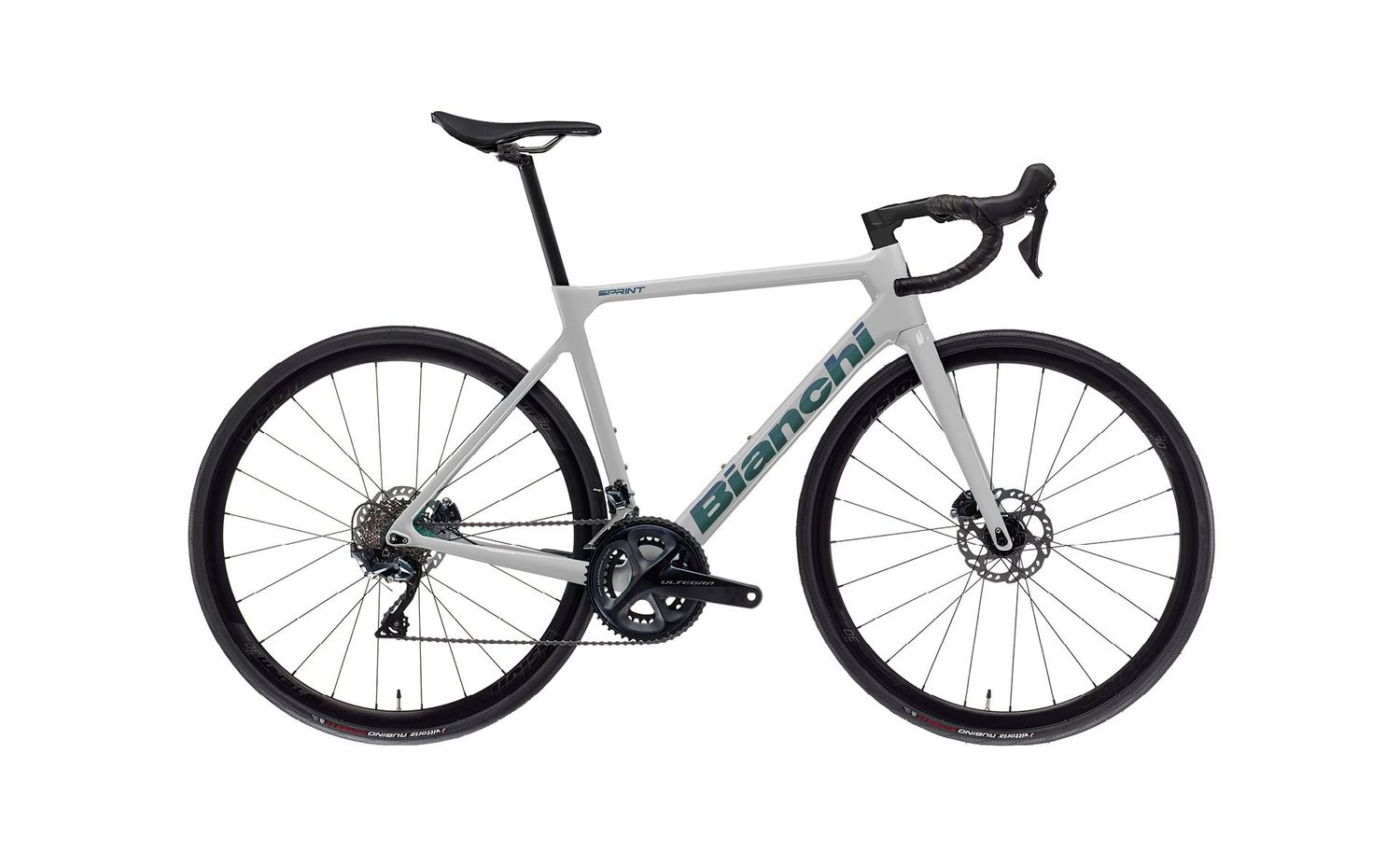

Bianchi Sprint 105 12spd

TECH SPECS

• FRAMESET

  1. FRAME

     Sprint carbon monocoque, mechanical/electronic, BB-PressFit 86,5x41, head tube 1.4"-1.5", integrated seat clamp, full carbon dropout, Disc brake flat mount, thru axle 12 x 142 sizes 47-50-53-55-57-59-61cm

  2. FORK

     Full Carbon Aero Road 1.4">1.5" integrated head , Disc brake flat mount, thru axle 12x100

  3. HEADSET

     ACROS & FSA, for internal cable routing

• DRIVETRAIN

  1. SHIFTERS

     Shimano 105 hydraulic disc brake for road for 160mm rotor

  2. REAR DERAILLEUR

     Shimano 105 12sp, direct attachment, max 36T

  3. FRONT DERAILLEUR

     Shimano 105 12sp, top gear 50-54T, 16T capacity, for rear 12-speed

  4. CRANKSET

     Shimano 105 12sp,12- speed, Crank Length: 170mm-47/53cm, 172.5mm-55/59cm, 175mm-61cm

  5. BOTTOM BRACKET

     Shimano, SM-BB72-41B, press fit for road, bearing, inner cover

  6. CHAIN

     Shimano

• BRAKES

  1. BRAKES

     Shimano, Hydraulic disc brake, included in the shifter

  2. ROTOR

     Shimano rotor for disc brake center lock, SM-RT70, 160mm

• WHEELS

  1. WHEELS

     Velomann alloy, disc brake, 30mm rim profile, hub team TC j-bend, spoke round 2mm black color, clincher 622x19C, w/rim tape, front HH12 - rear HH12/142

  2. TIRE

     Vittoria Rubino IV G2.0 graphene, 700x25, 60TPI

• COCKPIT

  1. STEM

     Velomann, Alloy 6061, raise - 7° Ext: 80mm-44cm, 90mm-47/50cm, 100mm-53cm, 110mm-55/57cm, 120mm-59/61cm

  2. HANDLEBAR

     Velomann Compact, alloy 6061, diam. 31,8mm, reach 80mm, drop 130mm Size: 400mm-44/53cm,420mm-55/59cm,440mm-61cm

  3. GRIPS

     Bianchi cork, black

• SADDLE

  1. SEATPOST

     Velomann alloy 6061, 15mm offset, 27,2mm; Length: 300mm-44cm ; 350mm-47/61cm

  2. SADDLE

     Velomann Seta
