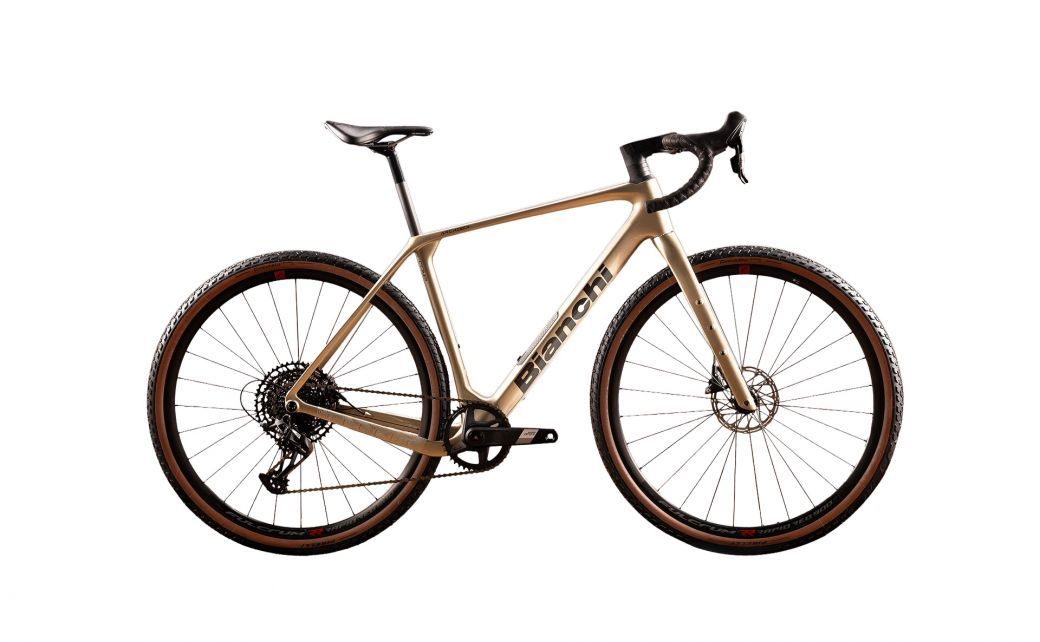

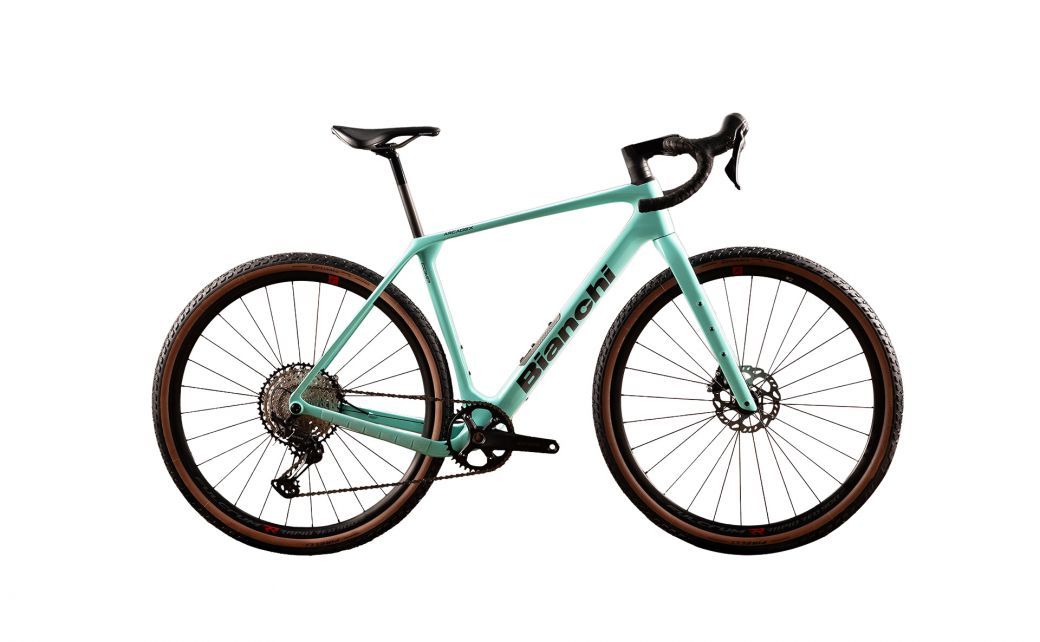

Bianchi Arcadex Comp

$3,200.00

Available to Demo & Order!

Internal Frame Storage, UDH/T-Type! Demo's sold used in Aug/Sept

Out of stock, available for pre-order

Product Details

Brand: Bianchi

All new lightweight carbon gravel bike from Bianchi, with internal frame storage, dropped chainstay, Shimano GRX build.

Tech specs

Frameset

Frame

Arcadex Comp Disc Brake Specification: Flat Mount 140/160 Bottom Braket Standard: PressFit 86.5 X Ø41 Rear Axle: thru12 OLD (Over-Locknut-Dimension): 142 mm Front Derailleur:Non Compatible Rear Derailleur: SRAM UDH Hanger type Max Chainring Compatibility:

Fork

Bianchi Arcadex Fork Disc Brake Specification: Flat Mount 140/160 Front Axle: thru12 OLD (Over-Locknut-Dimension): 100 mm Tire Clearance: ETRTO 622-42mm Steer tube Diameter: 1 1/8"" Material: Epoxy - SM Carbon Fiber Composite

Headset

Bianchi Custom Acros ICR (Internal Cable Rounting) Spacers:5 mm x1, 10mm x3 Headtube Cover: Bianchi Costum Compresion Ring: 1.125 Inch Top Bearing: Angular contact Bearing 42x52x7 + seal Bottom Bearing: Angular contact Bearing 40x52x7 + seal

Drivetrain

Shifters

Shimano GRX 610 ST/BL-RX610

Rear Derailleur

Shimano GRX 822 RD-RX822, SGS Maximum Cassette Sprocket 51T

Crankset

Shimano GRX 610 FC-RX610-1, 40T Crank Length: 170mm-XS(47)-SM(51), 172.5mm-MD(55)-LG(58), 175mm-XL(61)

Bottom Bracket

Shimano SM-BB72-41B, press fit

Chain

Shimano CN-M7100

Cassette

Shimano CS-M7100-12 speed, 11-51T Driver body Interface: MicroSpline

Brakes

Shimano Hydraulic Brake, BR-RX400

Rotor

Shimano SM-RT70 IceTech Hub Interface: Centerlock Rotor Diameter: 160 mm (front&Rear)

Wheels

Fulcrum RapidRed 900 2-Way Fit Ready (for clincher and tubeless ready) Rim Diameter: 700C Material: Aluminum Alloy Rim Height: 24 mm Inner Wigth Channel: 22 mm

Tire

Pirelli Cinturato™ GRAVEL M Classic, 45-622 tan sidewall

Cockpit

Stem

Velomann AICR Alloy Rise: -2° Steerer Diameter: 1-1/8"" (28.6mm) HB interface Diameter: 1-1/4"" (31.8mm) Stem Lengths: 80mm - XS(47), 90mm - SM(51), 100mm-MD(55), 110mm-LG(58),120m -XL(61)

Handlebar

Velomann Gravel ICR Alloy Flare: 16° Drop: 130mm Reach 70mm Interface Diameter: 1 1/4"" (31.8mm) HandleBar Widths: 400 - SX(47) SM(51), 420 - MD(55) LG(58), 440 -XL(61)

Grips / Extensions

Bianchi Hexagon tape 2.5mm thickness, Full black

Saddle

Seatpost

Velomann Carbon UD SeatPost O.D: Ø27.2 mm Seatpost lengths: 300mm-SX(47), 350mm- SM(51) MD(55), LG(58) XL(61)

Saddle

Velomann MITORA 149 H2 cover: soft touch, padding: foam, shell: nylon carbon rails: Steel lenght: 250mm width: 149mm

Based on component availability, Bianchi reserves the right to make changes on specifications without notice.

Geometry

SIZE A B C D E F G G1 H I X Y WB

XS 410 527 430 75 90 601 74,5° 70,5° 51 425 376 544 1020

SM 448 545 430 75 110 615 74° 70,5° 51 425 383 563 1034

MD 485 564 430 75 130 625 73,5° 71° 51 425 391 584 1044

LG 515 583 430 75 155 639 73,5° 71,5° 51 425 402 610 1059

XL 550 605 432432 75 185 656 73° 71,5° 51 425 410 638 1077

Bianchi Arcadex Comp
